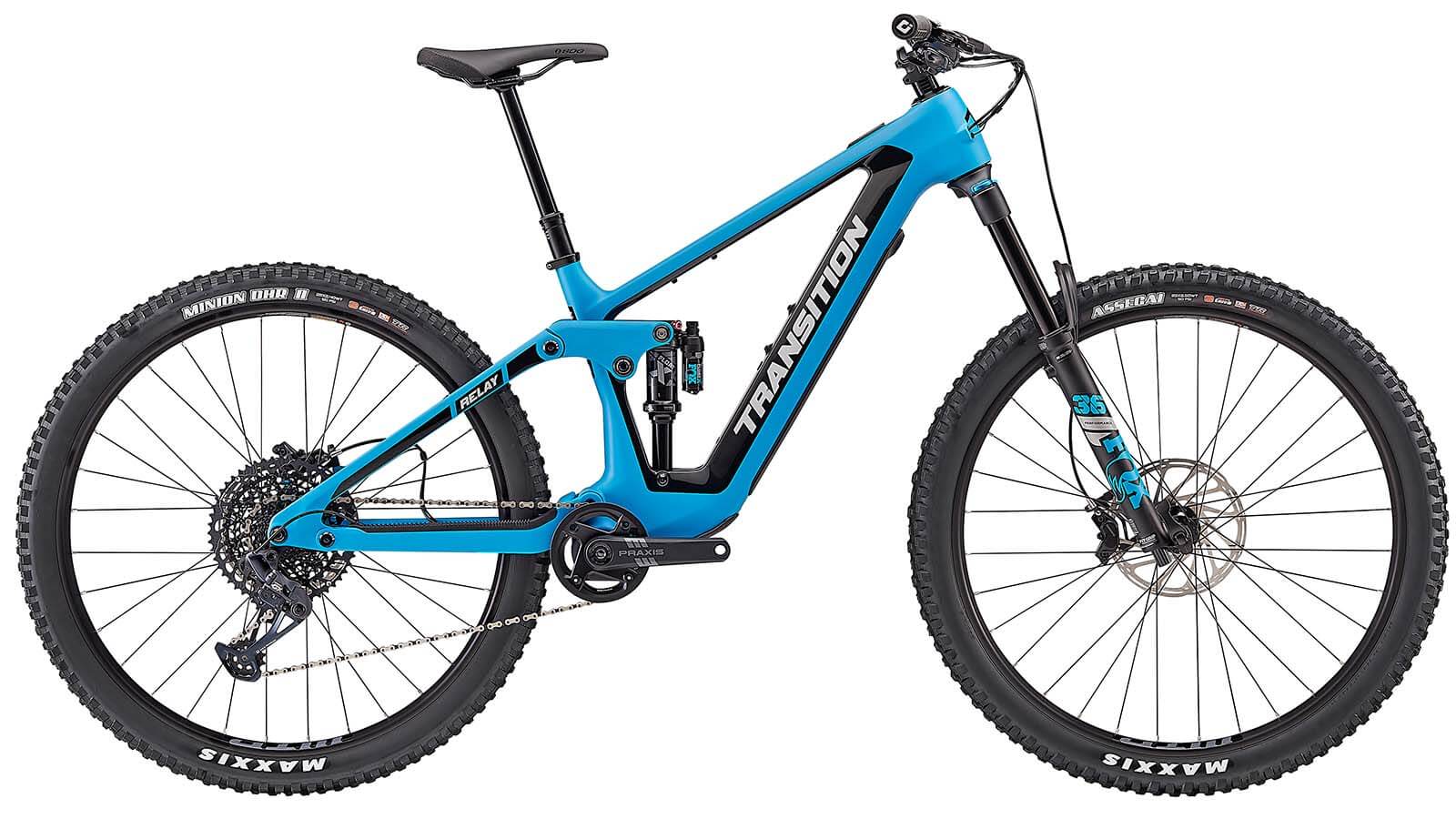

Transition Relay, Carbon, GX (2024)
$8,899.99
The Mountain Bikers eMTB
Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.
We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.
Specifications:
| Carbon GX | |
| Weight |
44.0 lbs / 19.97 kg (Size MD, Including Battery) 39.0 lbs / 17.70 kg (Size MD, Excluding Battery) |
| Frame | Relay Carbon 160mm |
| Wheel Size |
29" (X-Small 27.5") |
| Drive Unit | Fazua Ride 60 |
| Battery | Fazua Energy 430 Take Out |
| Display | N/A |
| Assist Switch | N/A |
| Rear Shock | Fox Float X Performance (205x60mm) |
| Fork | Fox Float 36 Grip Performance (160mm Travel) |
| Headset | FSA No.55R |
| Stem | RaceFace Aefect R (40mm) |
| Handlebar |
RaceFace Chester 35 XS/SM(780x20) MD/LG/XL/XXL(780x35) |
| Grips | ODI Elite Flow Lock-On |
| Saddle | SDG Bel Air 3 |
| Seat Post |
OneUp Dropper Post XS(120mm) SM(150mm) MD(180mm) LG/XL/XXL(210mm) |
| Brakes | SRAM Code R |
| Rotors | SRAM Centerline (200mm) |
| Shifter | SRAM GX Eagle Single Click |
| Derailleur | SRAM GX Eagle |
| Cassette | SRAM XG 1275 (10-52t) |
| Chain | SRAM GX Eagle |
| Crank |
Praxis Alloy ETOR (165mm, X-Small 160mm) |
| Chainring | SRAM 32t Alloy E Ring (T-Type/X-Sync2) |
| Chainguide | Transition Bash Spider |
| Rims | WTB i30 |
| Spokes | Pillar Spokes |
| Hubs | Novatec D791SB-B15/D902SB-B12 |
| Tire/Front | Maxxis Assegai 3C EXO+ 2.5 |
| Tire/Rear | Maxxis Minion DHRII 3C EXO+ 2.4 |
| Included | Fazua Charger, Tubeless Valves & Sealant |
| Please note: | Specs are subject to change at any time. |
