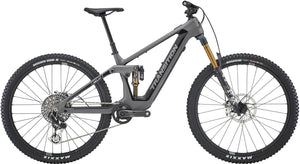

Transition Relay, Carbon, XX AXS (2024)
The Mountain Bikers eMTB
Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.
We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.
XX AXS | |
Weight |
42.2 lbs / 19.14 kg (Size MD, Including Battery) 37.2 lbs / 16.89 kg (Size MD, Excluding Battery) |
Frame | Relay Carbon 160mm |
Wheel Size | 29" |
Drive Unit | Fazua Ride 60 |
Battery | Fazua Energy 430 Take Out |
Display | N/A |
Assist Switch | N/A |
Rear Shock | Fox Float X Factory (205x60mm) |
Fork | Fox Float 36 Grip 2 Factory (160mm) |
Headset | FSA NO.55R |
Stem | ANVL Swage (40mm) |
Handlebar | OneUp Carbon SM(800x20) MD/LG/XL(800x35) |
Grips | ODI Elite Flow Lock-On |
Saddle | SDG Bel Air 3 |
Seat Post | OneUp Dropper Post XS(120mm) SM(150mm) MD(180mm) LG/XL/XXL(210mm) |
Brakes | SRAM Code Ultimate Stealth |
Rotors | SRAM HS2 (200mm) |
Shifter | SRAM POD Ultimate Bridge MMX |
Derailleur | SRAM XX AXS Eagle Transmission |
Cassette | SRAM XS 1297 T-Type (10-52t) |
Chain | SRAM XX Eagle Transmission |
Crank | Praxis Carbon ETOR (165mm, X-Small 160mm) |
Chainring | SRAM 32t Alloy E Ring (T-Type) |
Chainguide | Transition Bash Spider |
Rims | Crankbrothers Synthesis Enduro Carbon |
Spokes | Sapim D-Light (Front) Sapim Strong (Rear) |
Hubs | Industry Nine 1/1 (28H Front/32H Rear) |
Tire/Front | Maxxis Assegai 3C EXO+ 2.5 |
Tire/Rear | Maxxis Minion DHRII 3C EXO+ 2.4 |
Included | Fazua Charger, SRAM AXS Battery Charger, Tubeless Valves & Sealant |
Please note: | Specs are subject to change at any time. |
